Glasgow 488

Date Last Reviewed: 29/11/2025

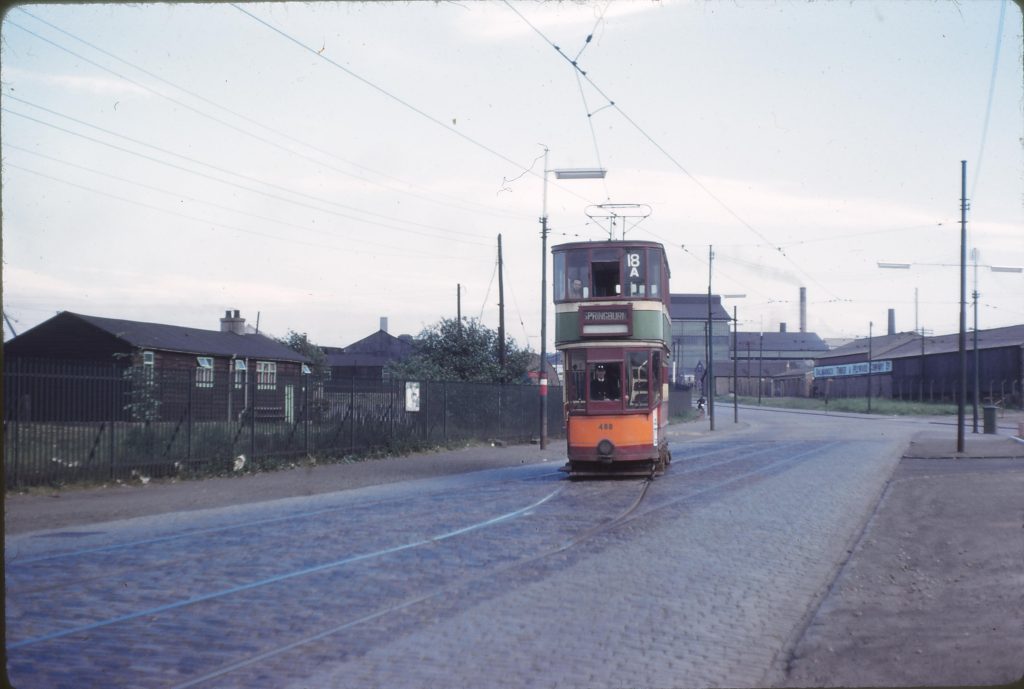

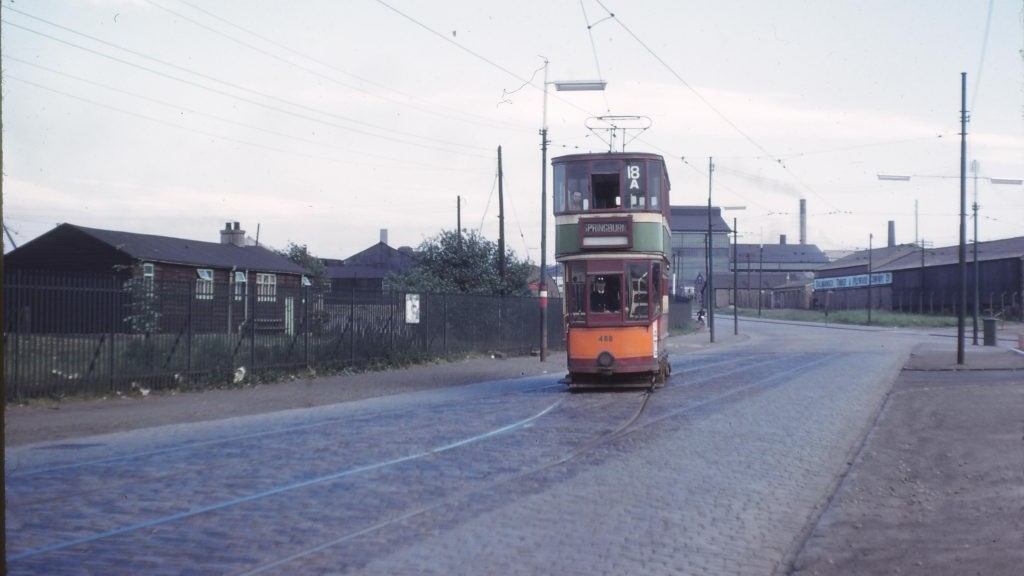

Then and Now

Brief History

Tram 488 was one of a batch of 70 built as the final open-topped, un-canopied Standard trams, featuring monitor roofs and 90-degree staircases. These later models included small improvements such as louvered ventilator strips instead of perforated ones and inside-spring trolley masts. Originally a Green route car, 488 was fitted with a Brill 21E 6-foot wheelbase truck, Westinghouse 49B 30 HP motors, and likely Westinghouse Type 90M controllers. In July 1923, it received platform vestibules and a new 7-foot wheelbase Brill truck while retaining its Green route colour. In May 1931, 488 was extensively reconditioned with enclosed balconies, upholstered seating, two 60 HP GEC WT28 motors, a Brush 21E 8-foot wheelbase truck, English Electric CDB2 controllers, heaters, and air brakes—possibly Westinghouse. Its route colour changed from Green to White, and it was allocated to Dalmarnock Depot. Subsequent years saw regular maintenance and repaints, including a simplified “Bus Green” livery introduced in 1939 that removed the earlier Greek corner detailing. 488 continued in service through the 1940s and beyond, remaining a fine example of the evolution of Glasgow’s Standard tram design.

Technical Specifications

Body Builder:

Truck Builder:

Motors:

First Owner / Operator:

Seating Capacity:

Current Status:

Current Location:

Glasgow Corporation

Brill

2 x Metropolitan Vickers 60HP

Glasgow Corporation

59 Seats (21 In / 38 Out)

Undergoing Restoration

New Tram Depot

Technical Specifications

Body Builder: Glasgow Corporation

Truck Builder: Brill

Motors: 2 x Metropolitan Vickers 60HP

First Owner / Operator: Glasgow Corporation

Seating Capacity: 59 Seats (21 In / 38 Out)

Current Status: Undergoing Restoration

Current Location: New Tram Depot

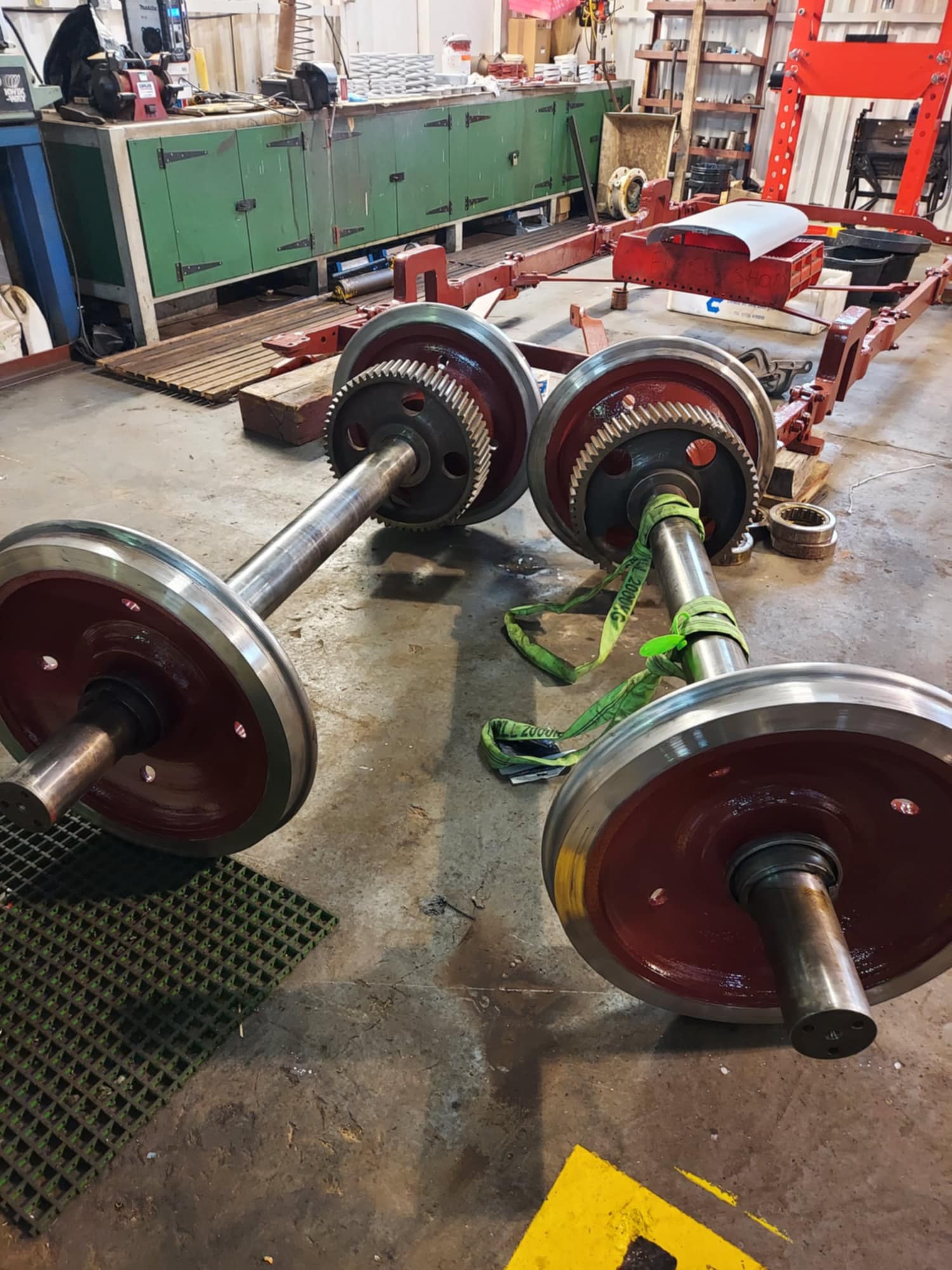

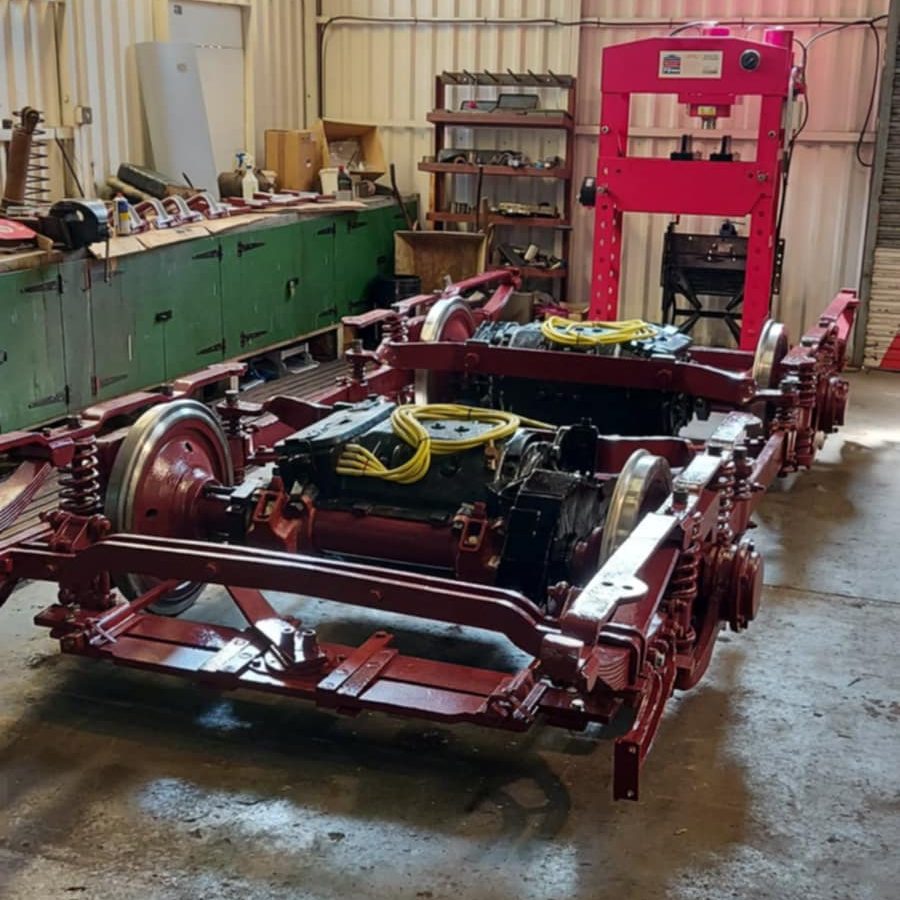

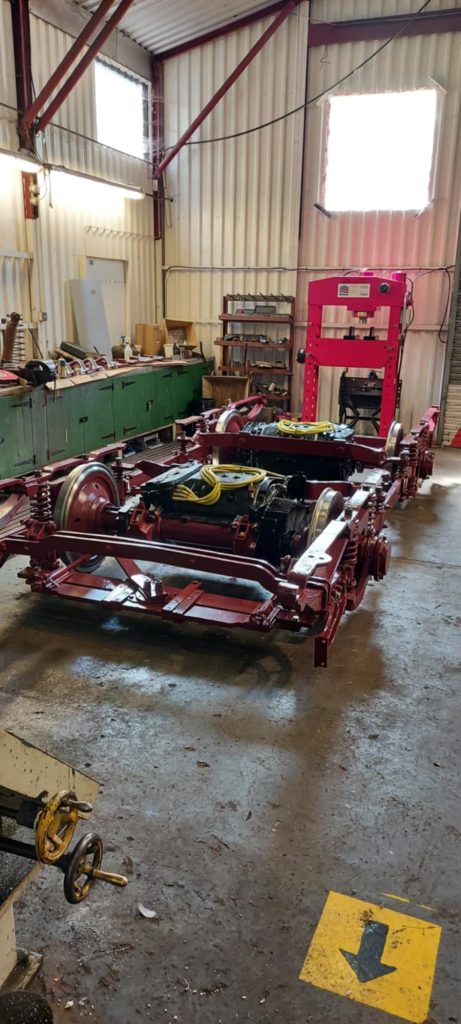

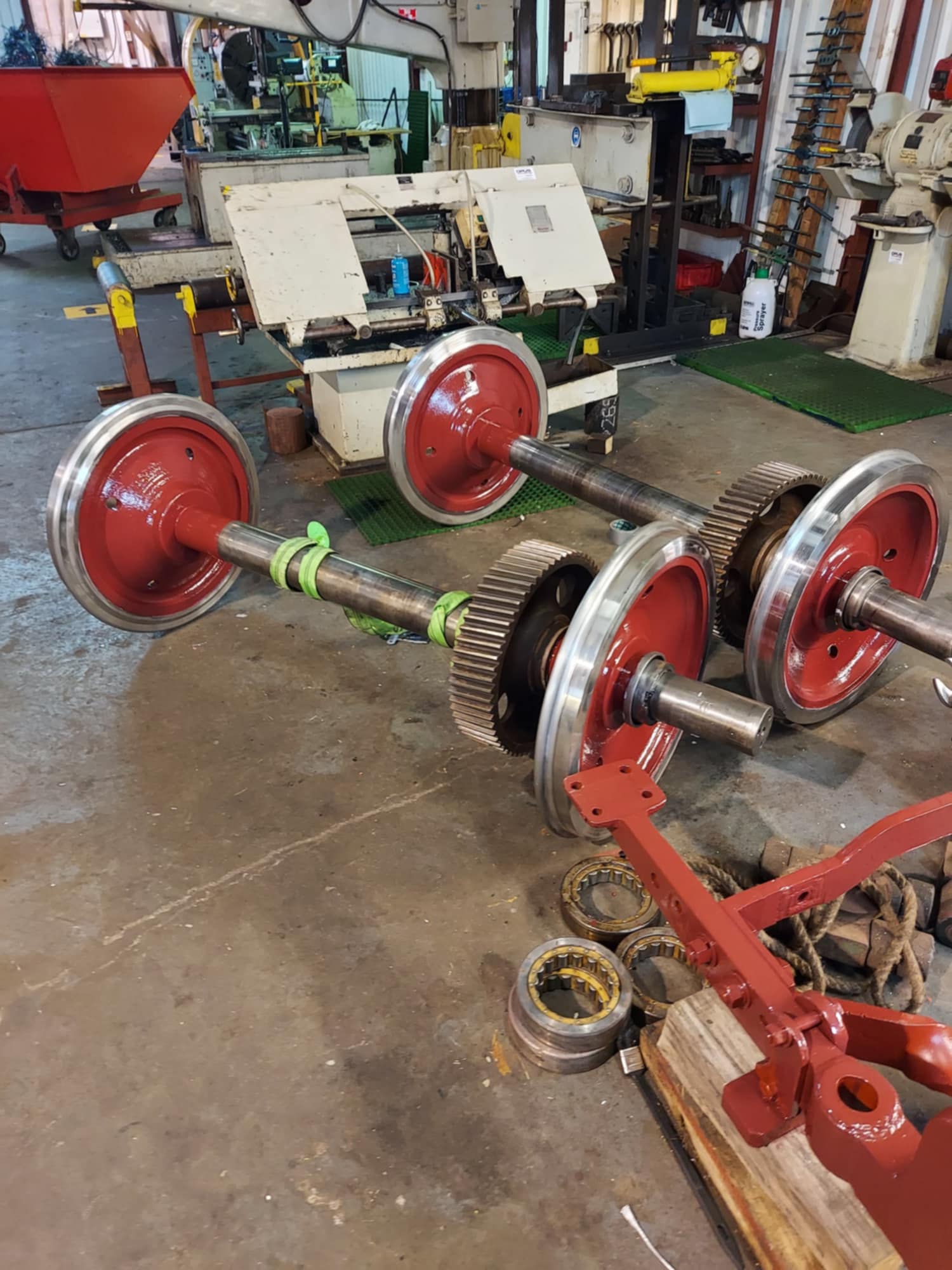

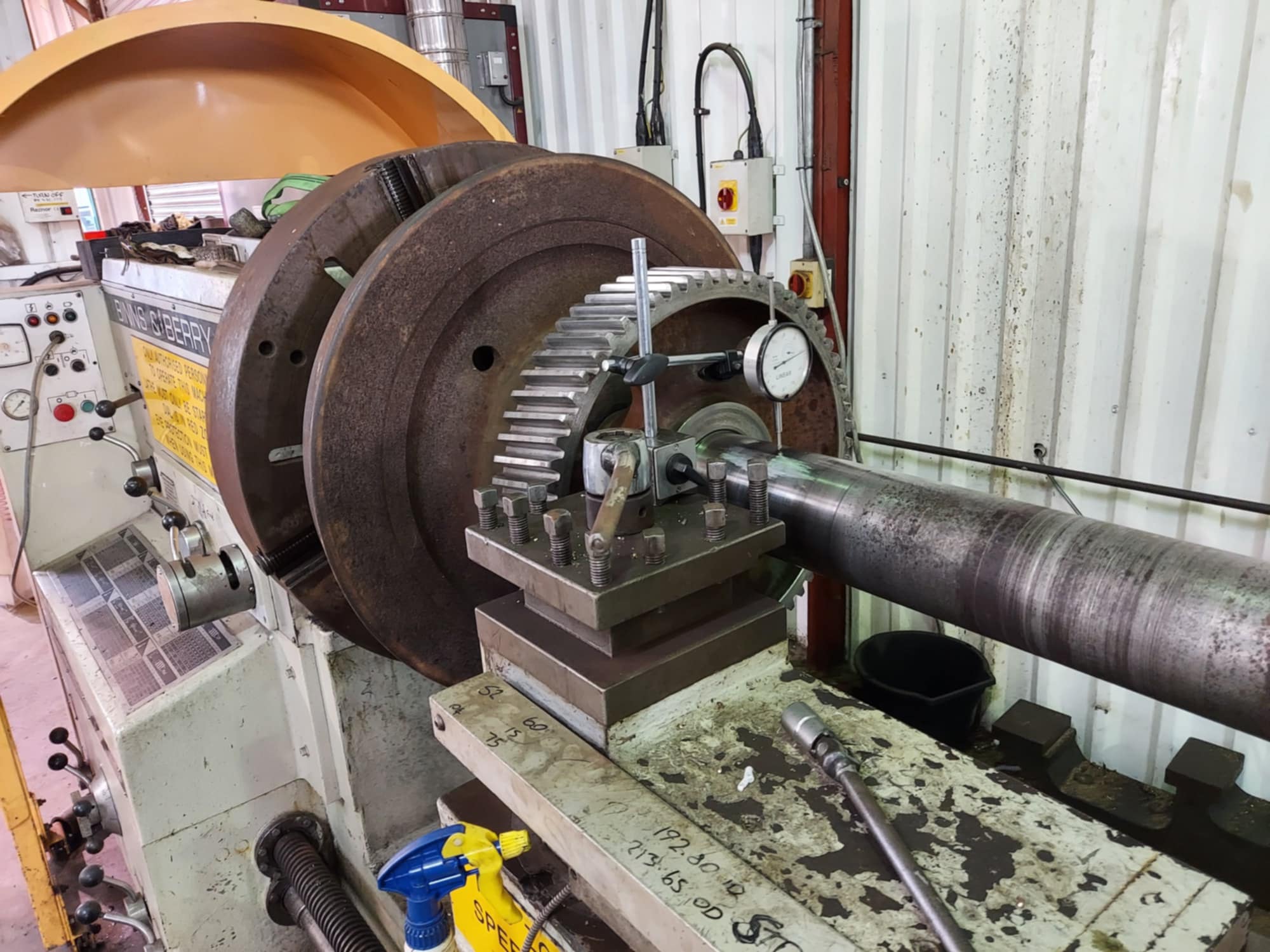

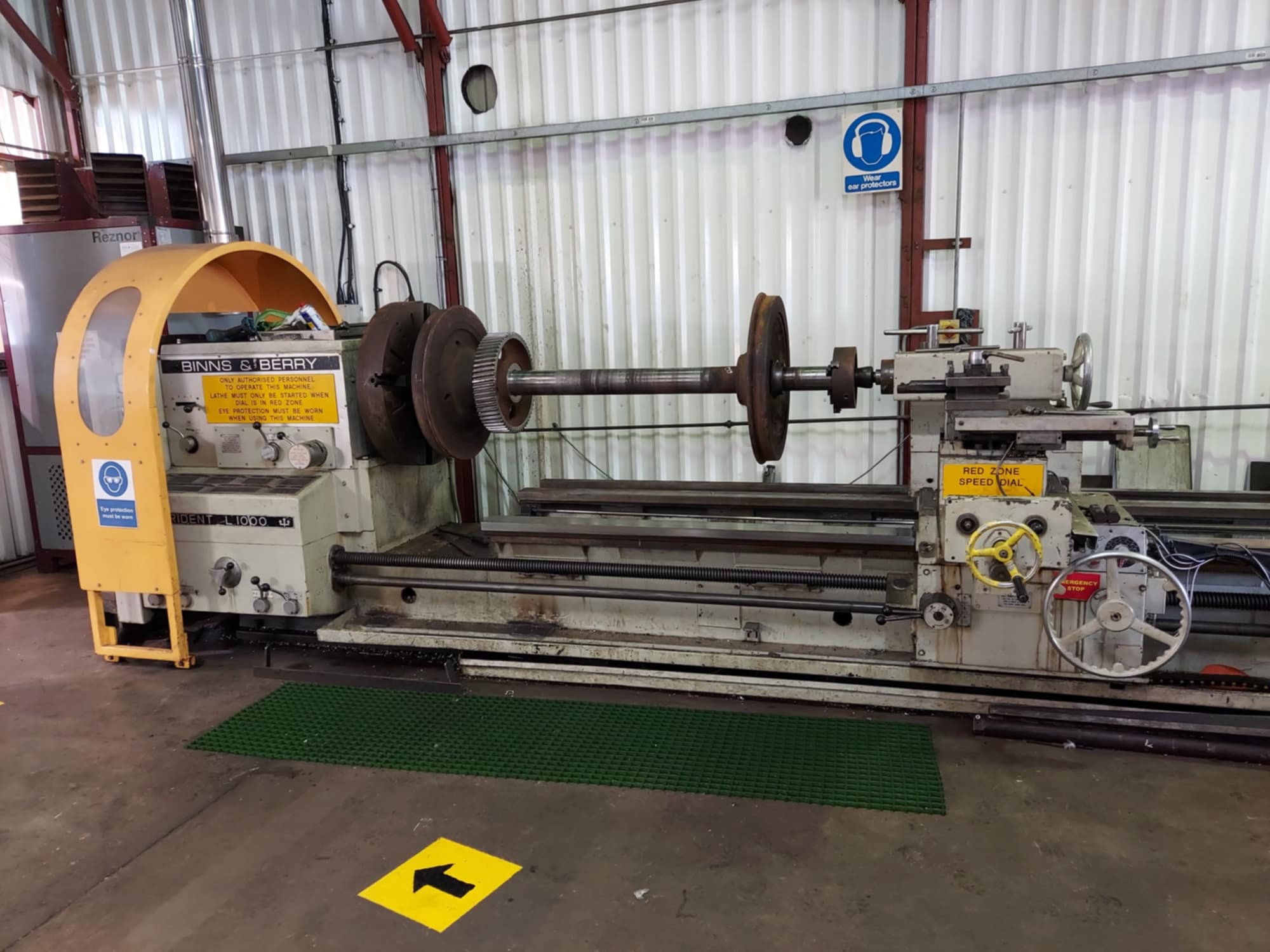

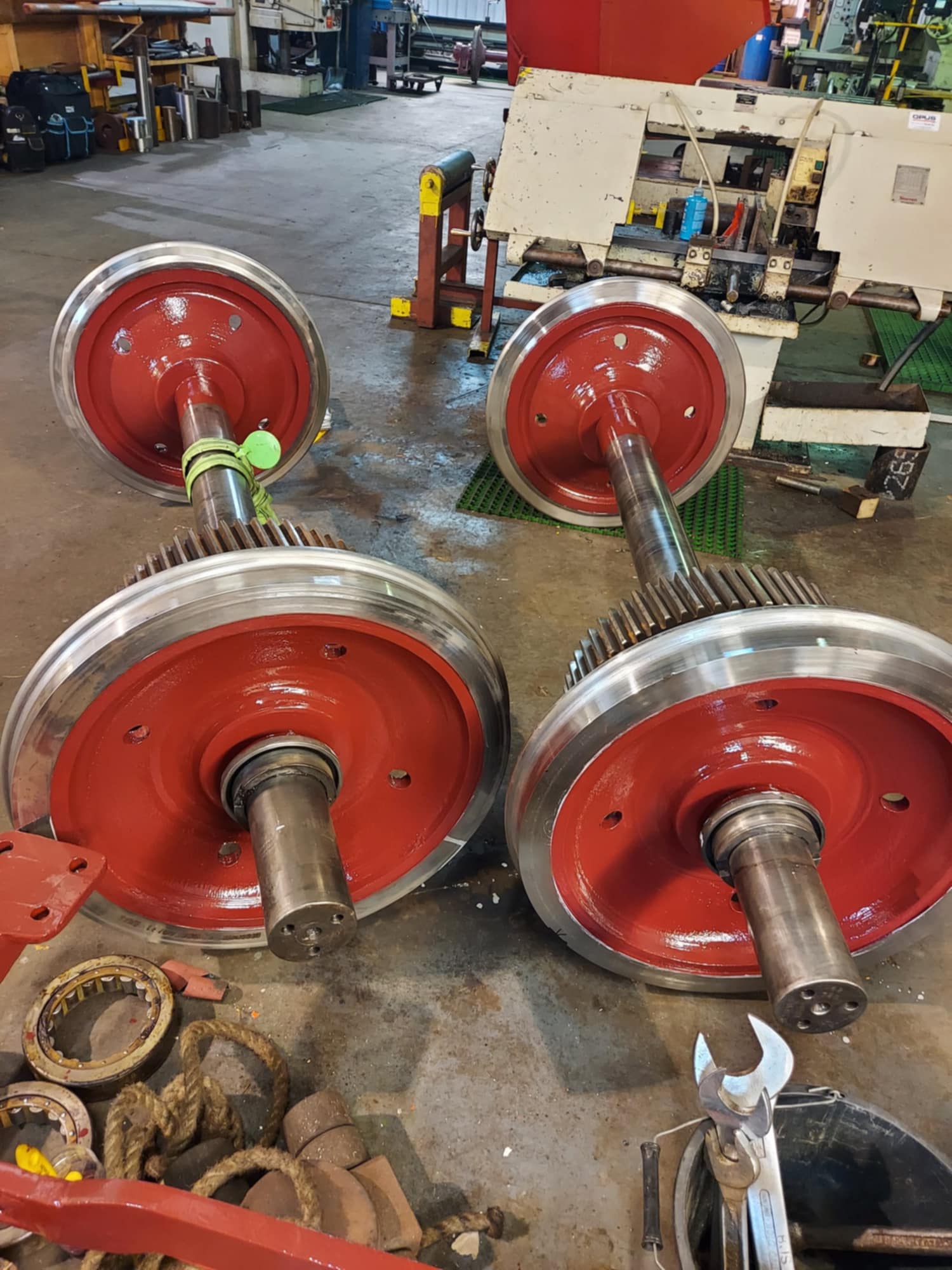

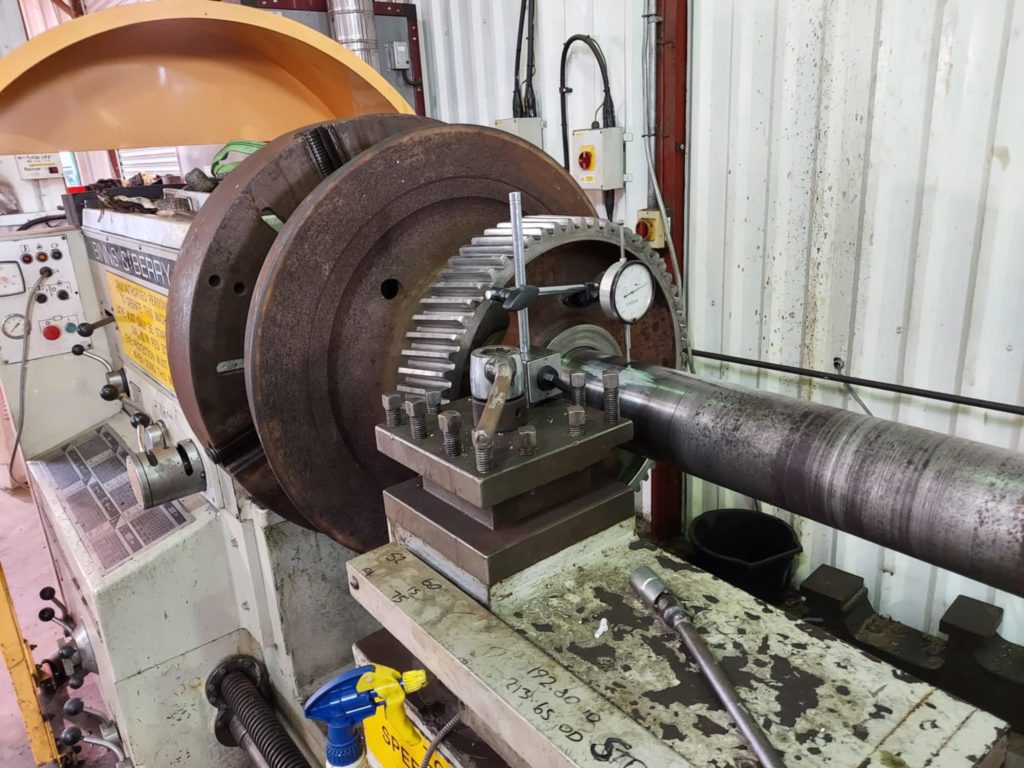

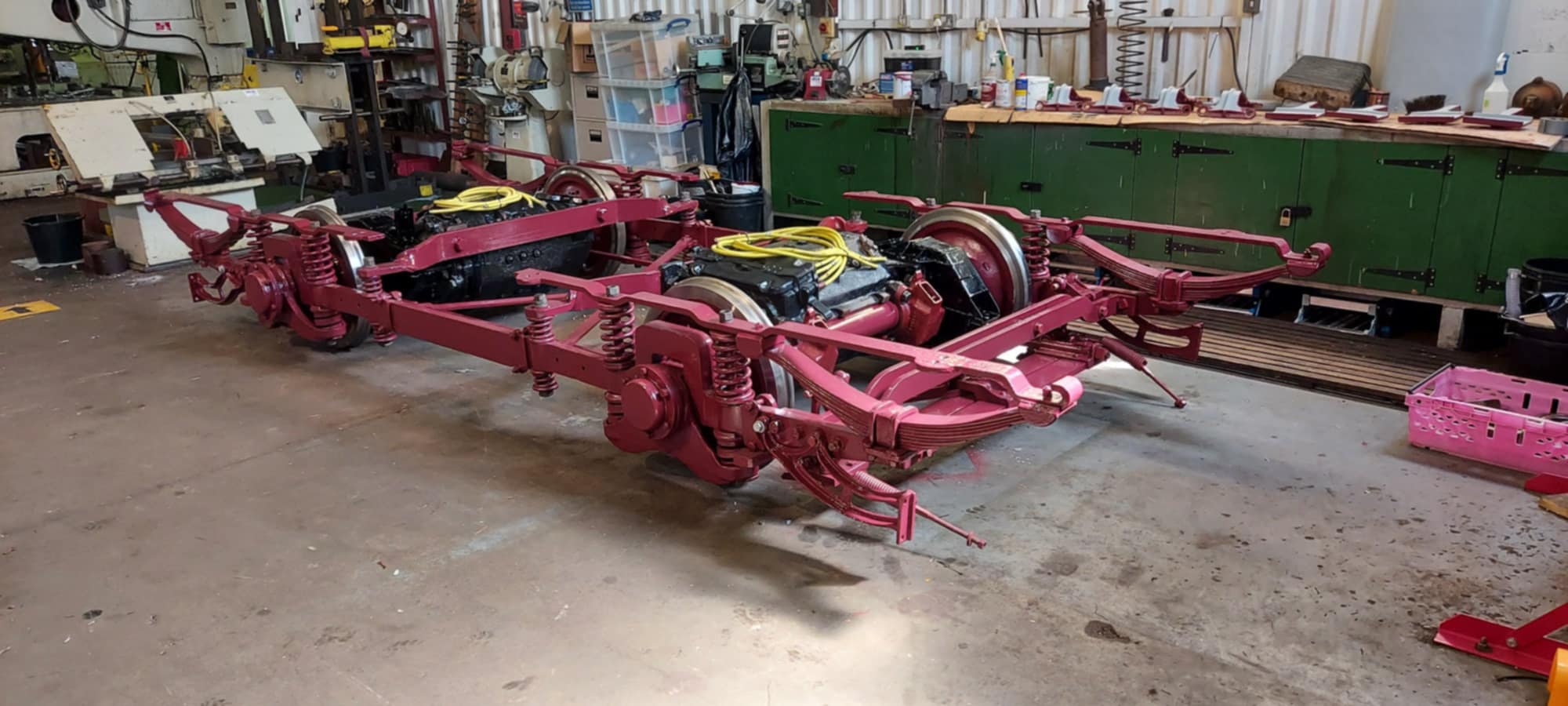

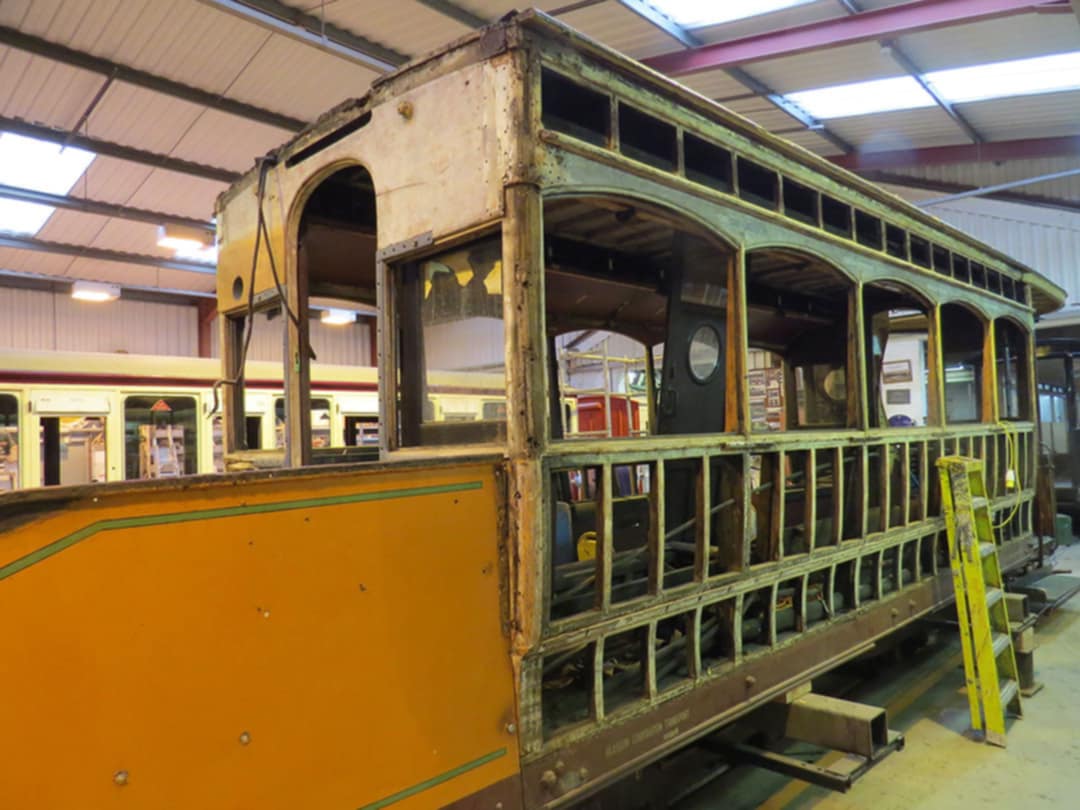

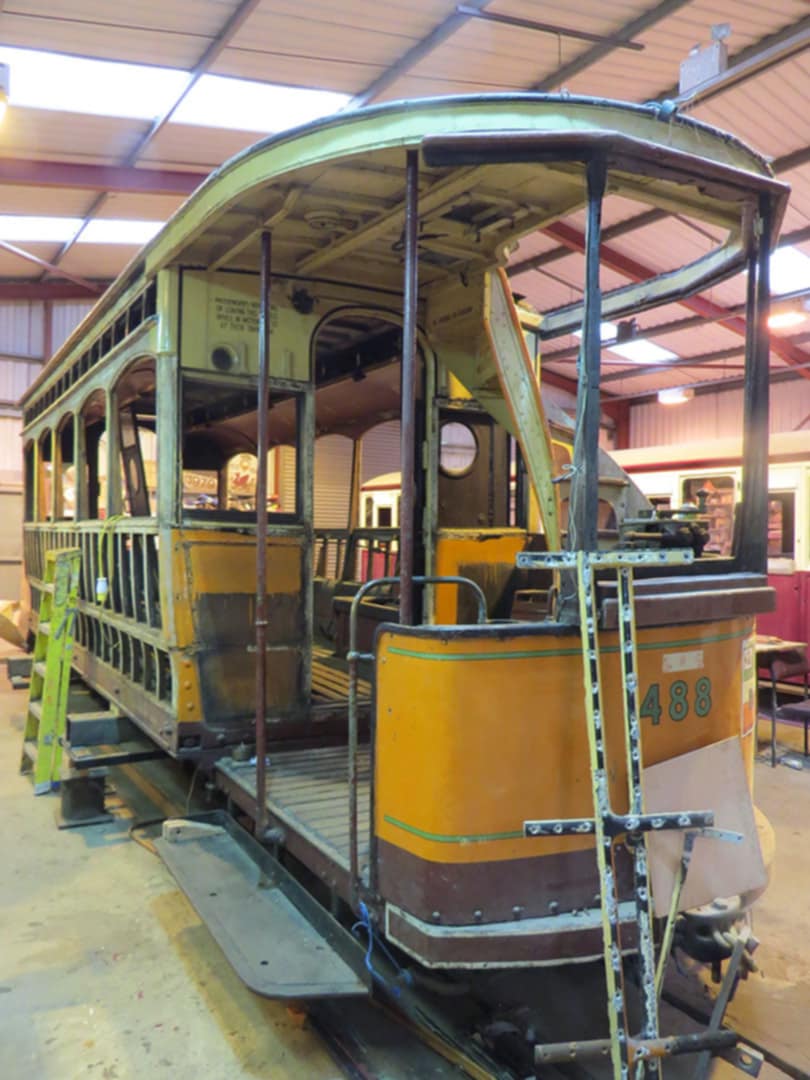

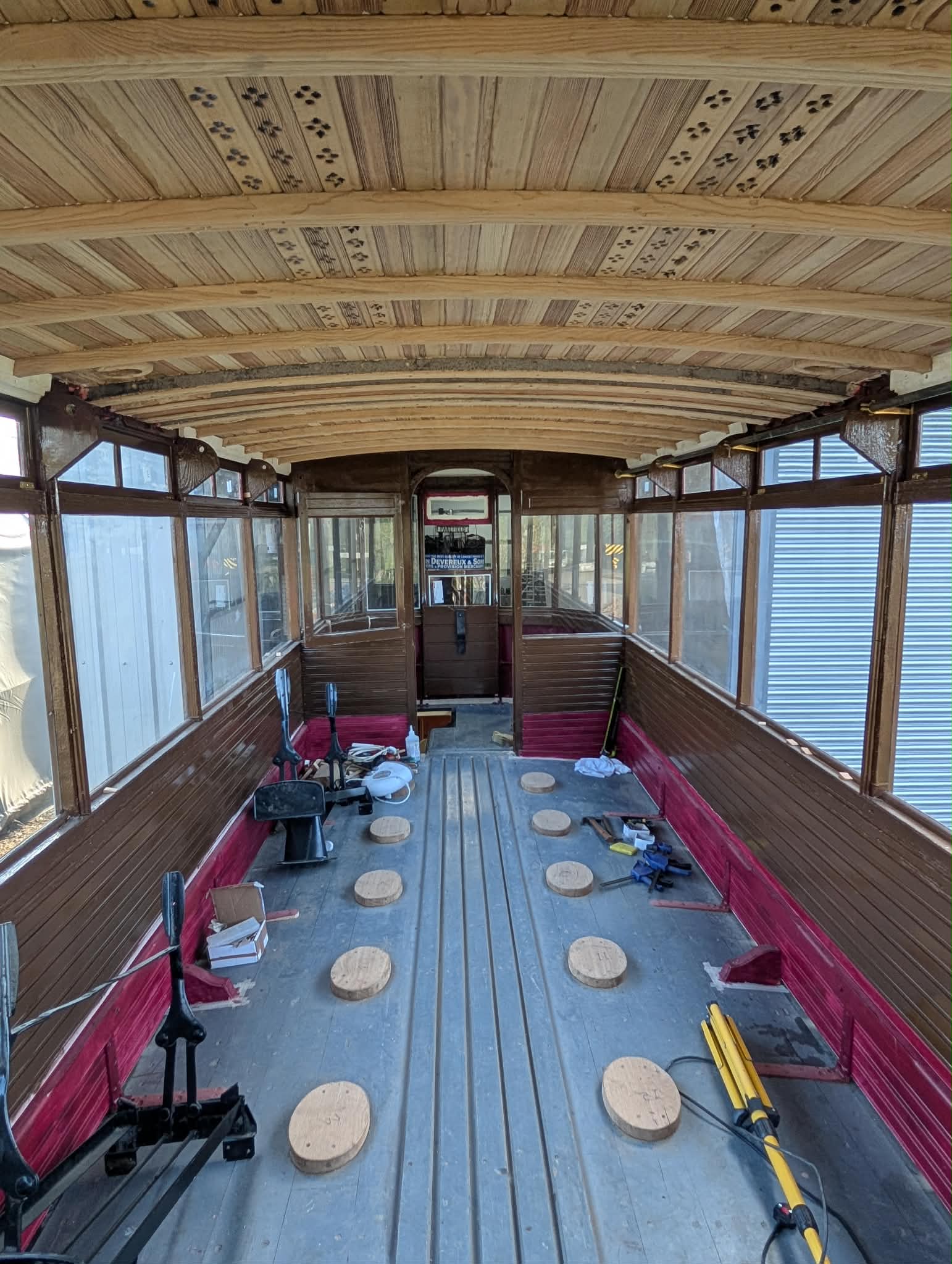

A restoration in pictures

Timeline

timeline_pre_loader

1903 Date built by Glasgow Corporation

1903 - Date Entered Service

1960 Overhauled following Fire at Dalmarnock Depot

1961 Date Withdrawn from Service

1961 Split into two halves for travel to the Paris Transport Museum (AMTUIR)

2013 - Returned from Paris Transport Museum due to height restrictions in their new building.

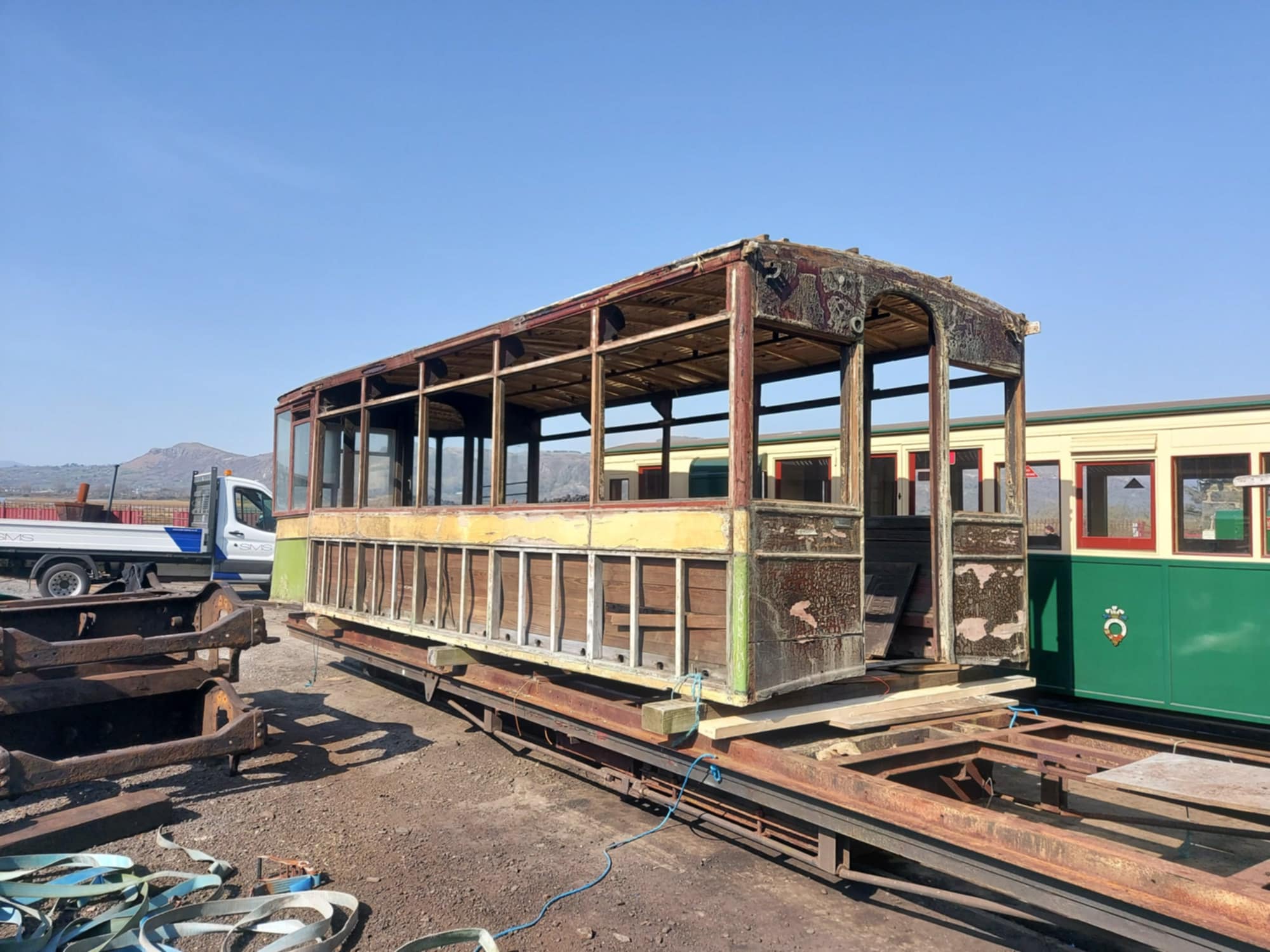

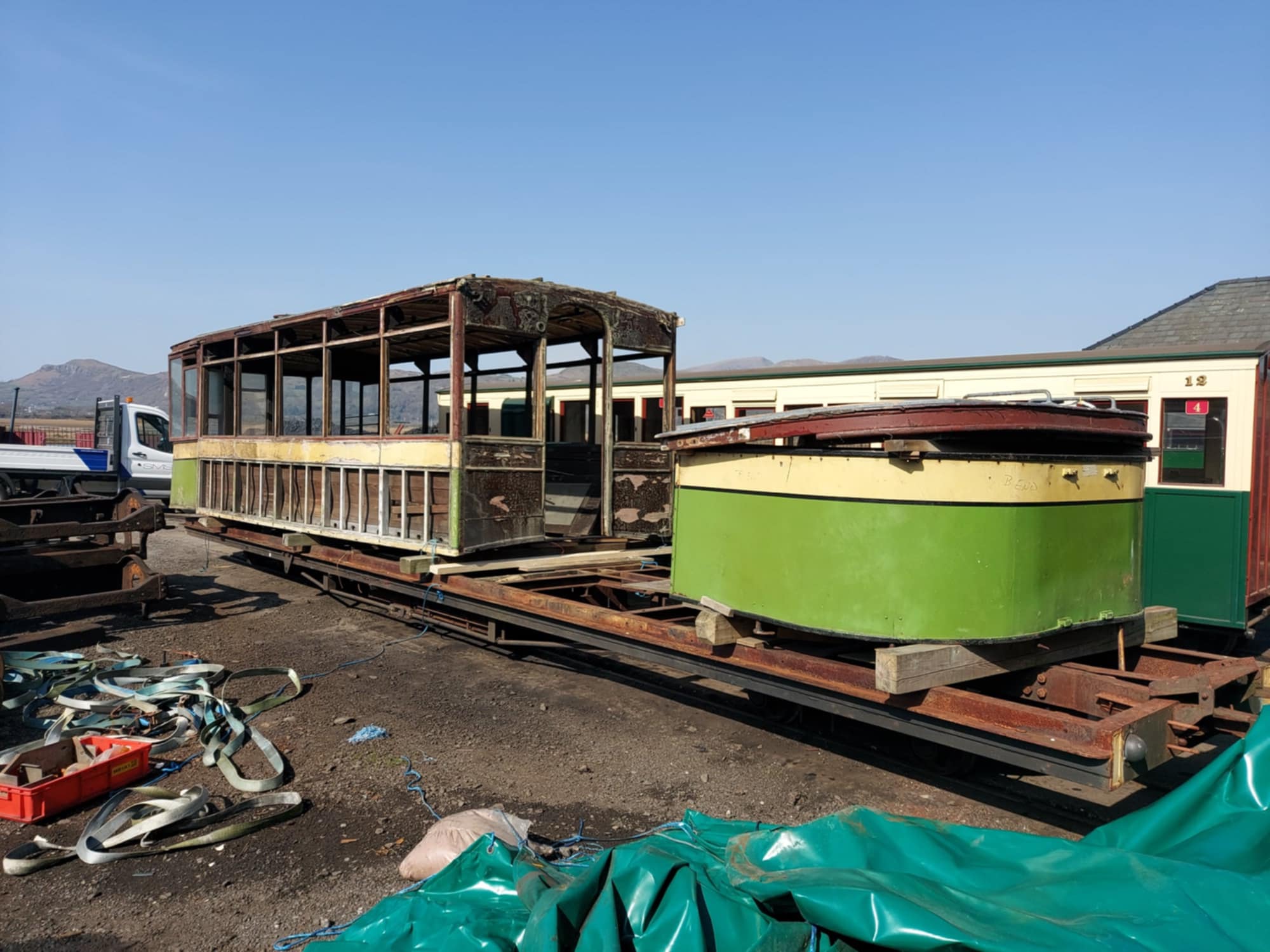

2013 Arrived at Ffestiniog Railway to begin Restoration

2013 - Officially Acquired into EATM Collection

2021 Lower deck transported to EATM offsite storage for further work

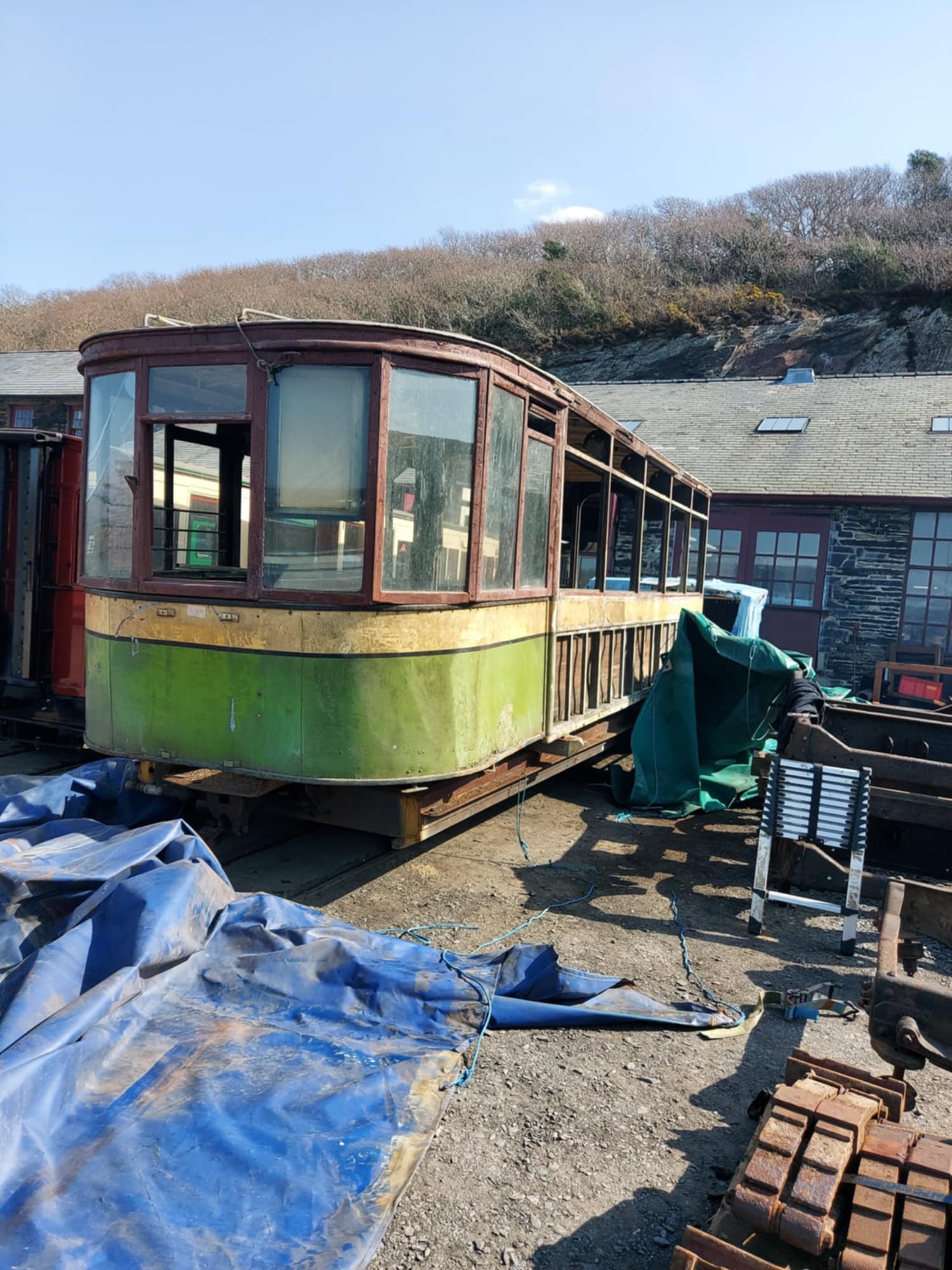

2022 Upper deck arrived at EATM from Ffestiniog Railway

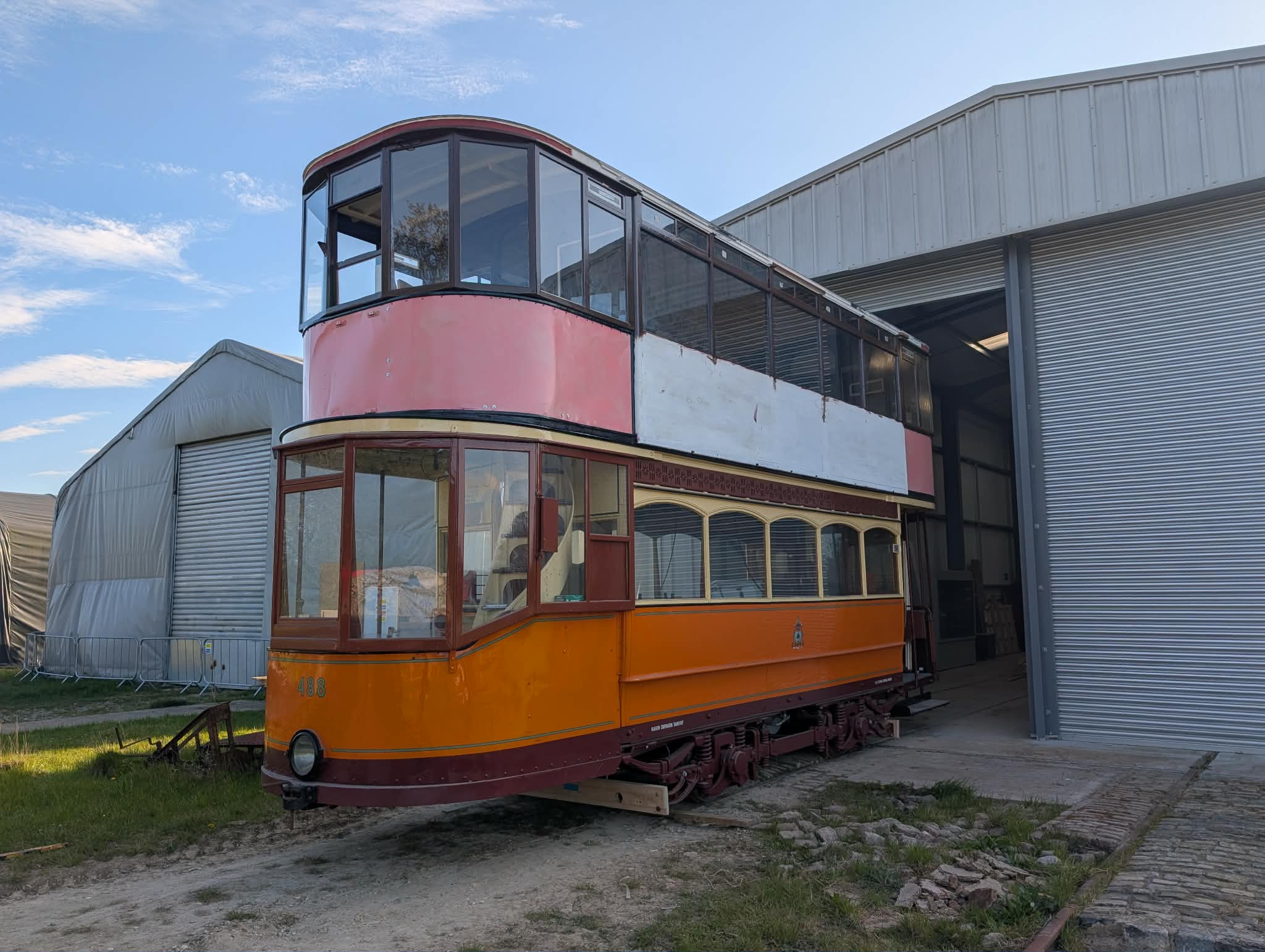

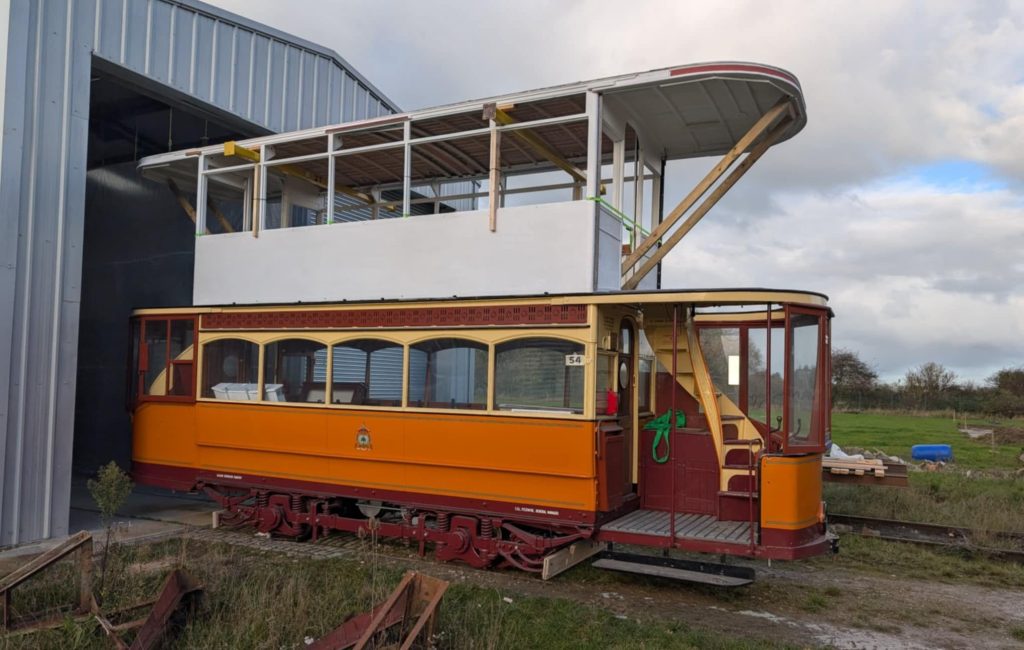

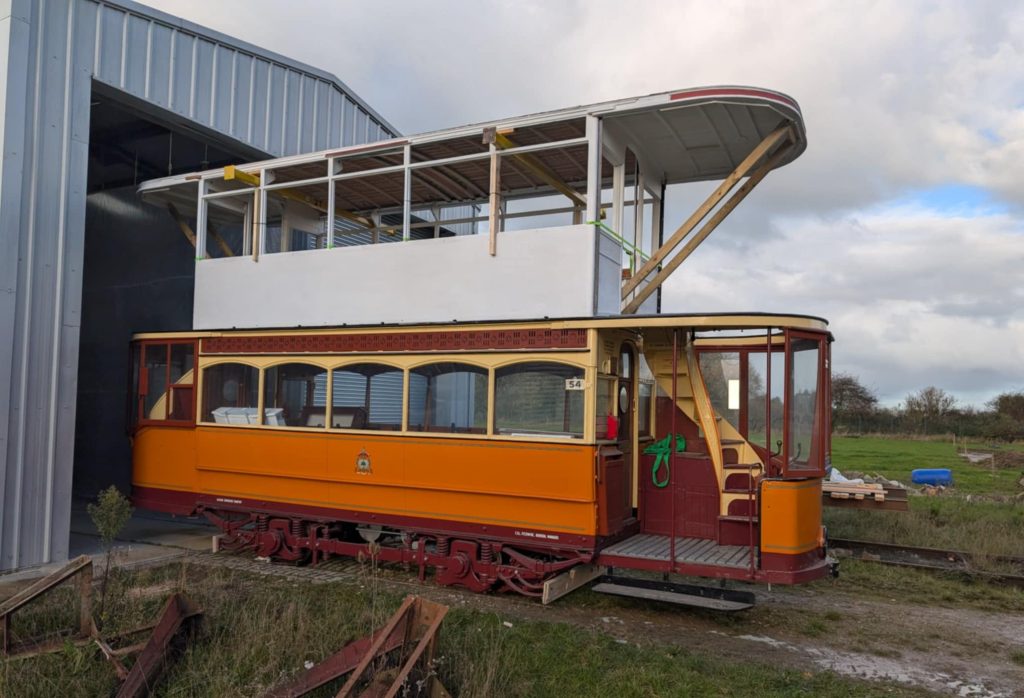

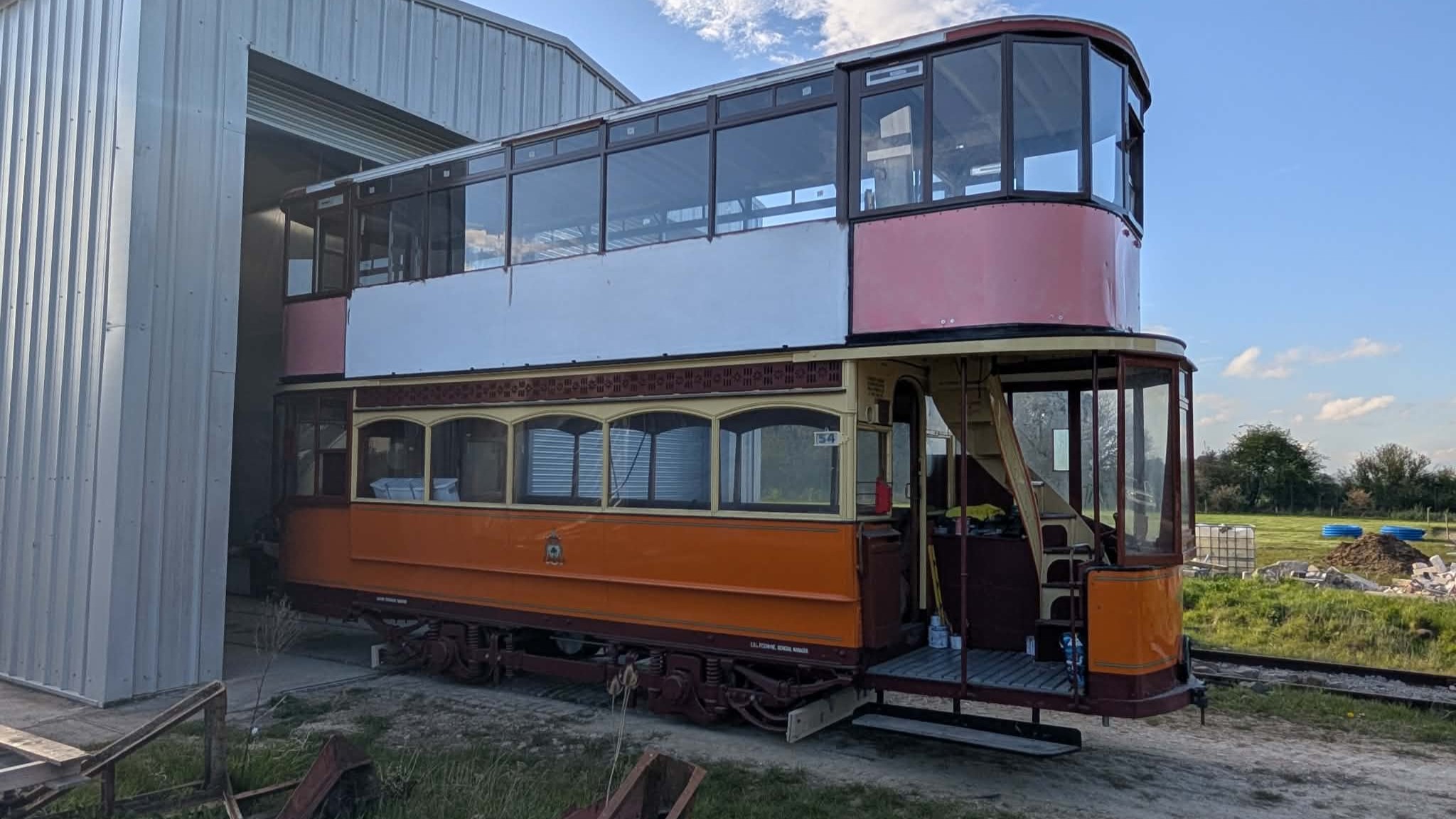

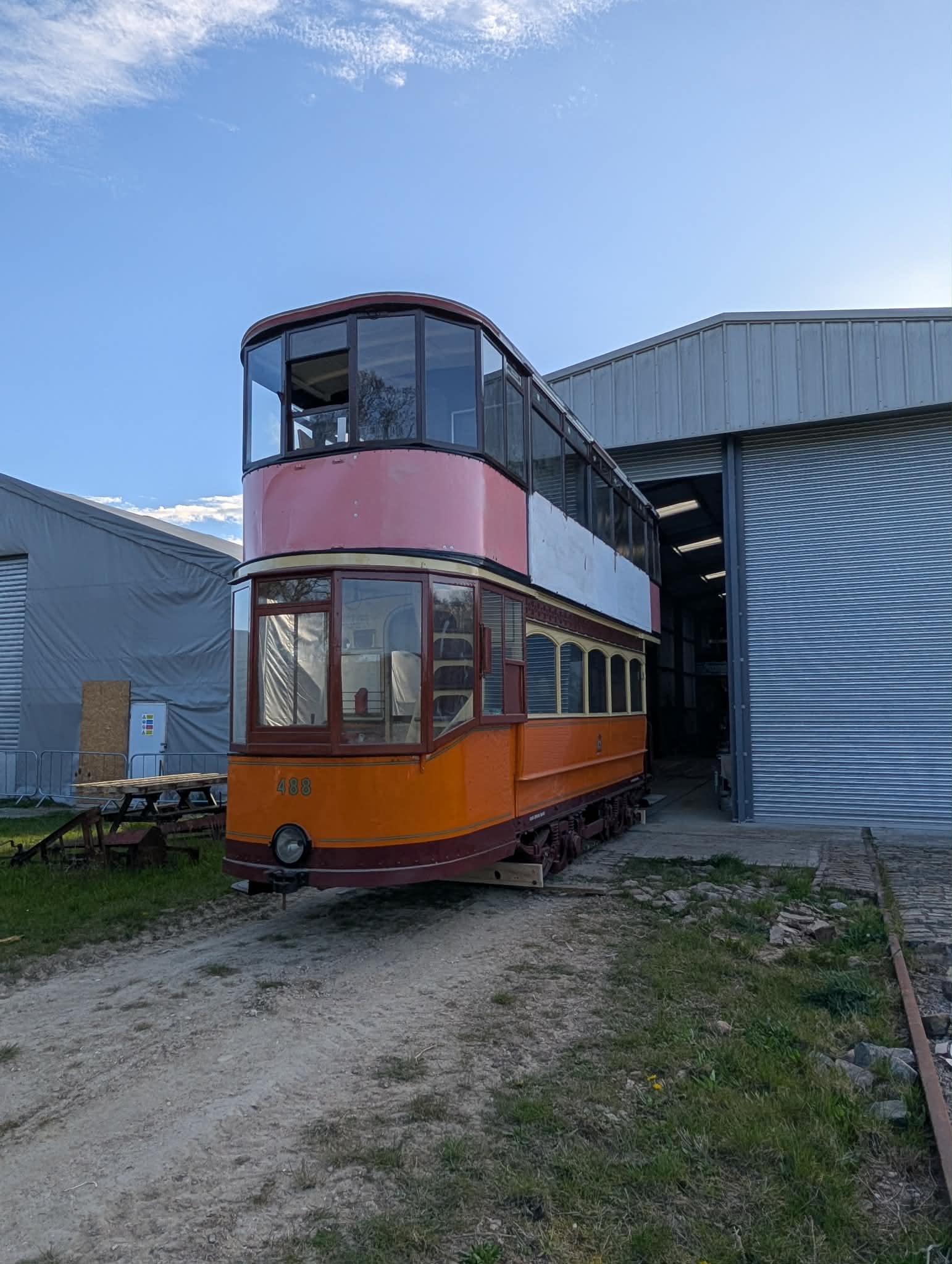

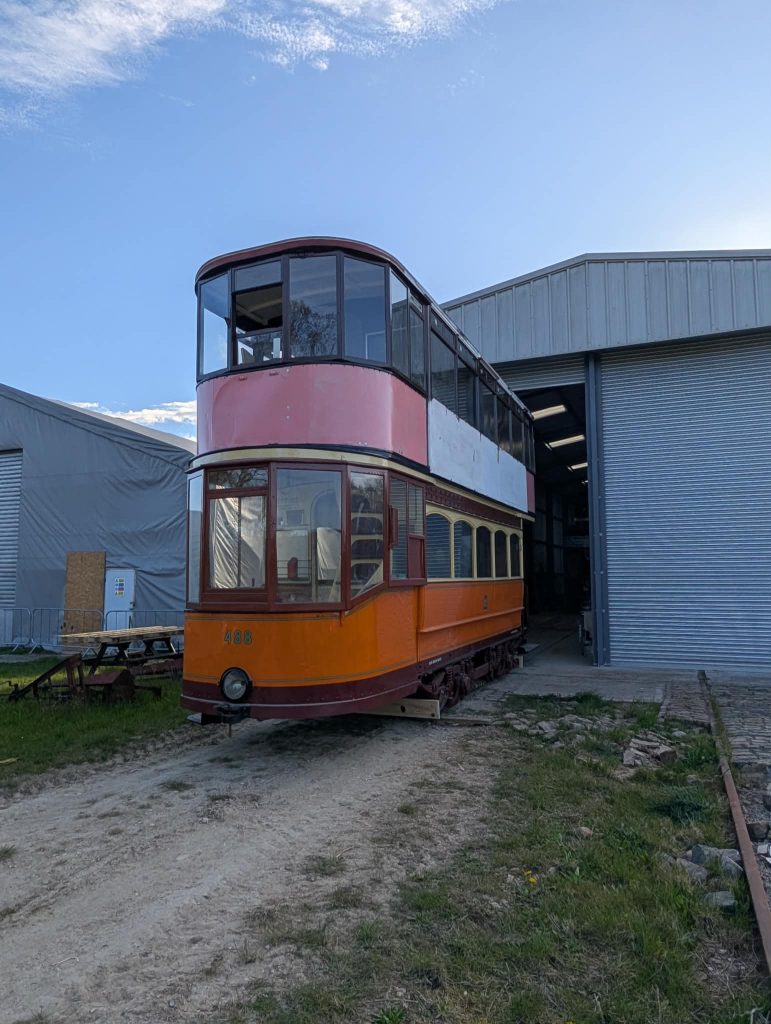

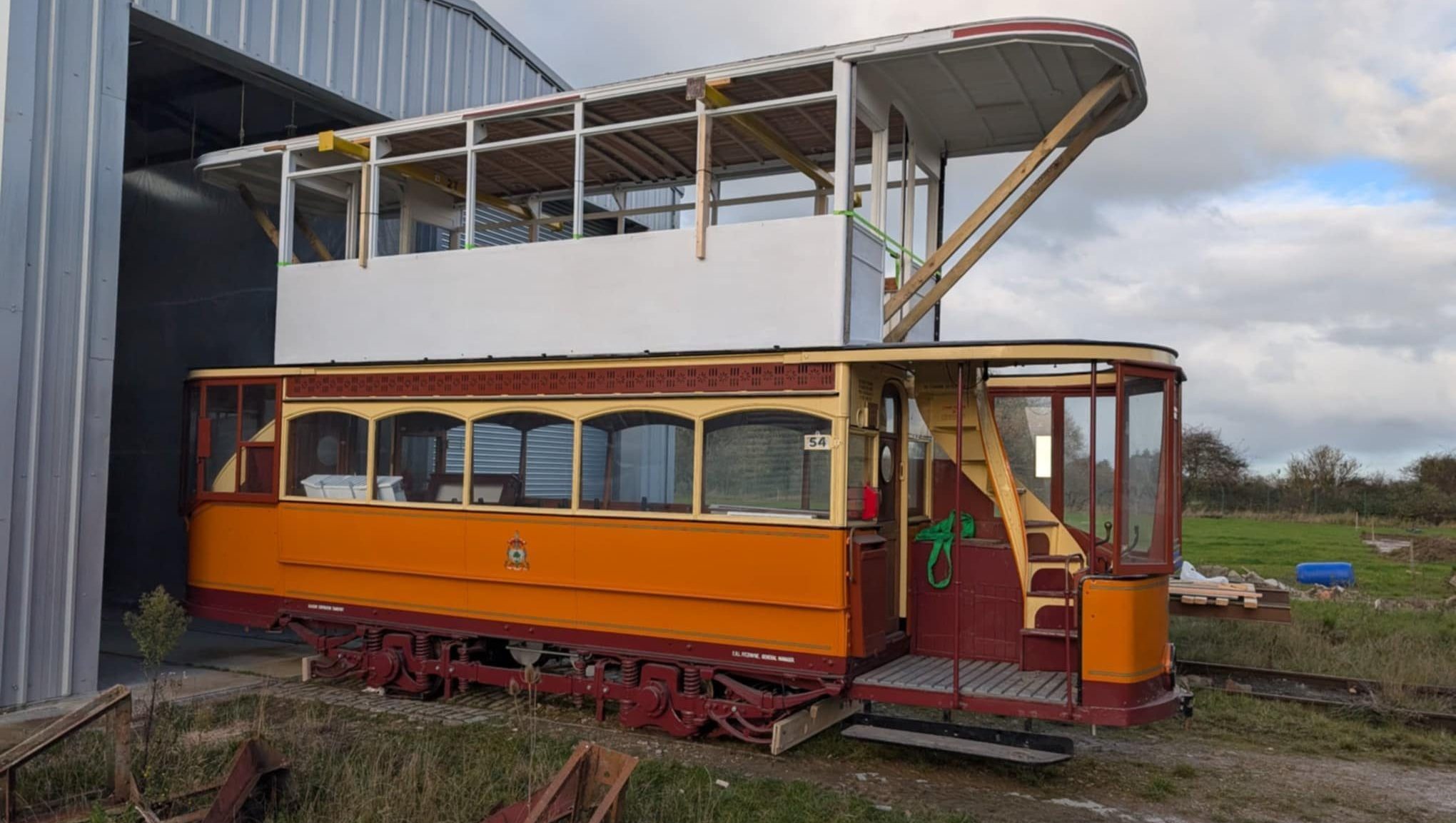

2025 Upper deck and lower deck finally reunited.

Click below to find our more about our campaign to get 488 back in action…
